A quality product from a traditional Czech producer Rostex Vyškov s.r.o.
Usage:
Rostex security fitting is intended to protect the cylinder and locking mechanism of ADLO security door from outside (unprotected) space.
The fitting also enables to manipulate the door easily and without problems during its opening and closing. Inseparable part of the fitting is a handle on the inner (protected) side, which controls the latch bolt on the mortise lock.
Description:

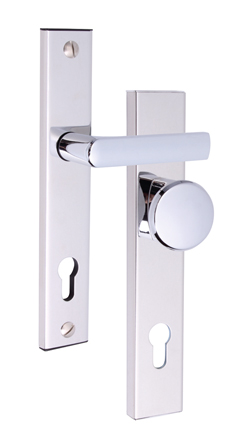

A security fitting Rostex is composed of the outer and inner fitting plates that are screwed together through pre-drilled holes in the door.
When the fitting is affixed to ADLO security door, it is impossible to deconstruct or steel it from the outside.
A quality steel pressing with welded connecting screws is the main security component of the outer plate of the security fitting Rostex.
Surface treatment:
Glossy chrome
Design:
Angular on both sides.
Outer (unprotected) door side: knob; inner (protected) door side: handle.
Security:
Security fittings tested and certified in security class 3 - a degree of high protection.
The appraisal and certification of products is provided by an independent accredited testing laboratory. Rostex security fitting complies with the requirement of the norm ČSN EN 1906 for usage in break-in resistant doors and with ČSN P EN 1627 for resistance against forced entry.
The security fitting is certified according to NBU scale of secrecy to level “secret”, which confirms its capacity to serve as a mechanical protective tool.
A security fitting marked T802 does not have a security plate covering the cylinder.
Limitation:
The basic type of fitting can be installed to a door of 40-45 mm depth. Fitting spacing (the distance between the handle axis and cylinder tambour axis) is 90 mm.
Longer bolts are available on special order for doors that are deeper, doors in different designs such as profile, panel design; or for TERMO door.
A security fitting marked T802 requires installation of an anti-drill cylinder.
Installation:
It is possible to buy the installation of fitting to your door separately (cat.No.111)
You may install it yourself if you have average experience with DIY.
The fitting is universal; adaptation to the right and left door is really simple.
In case of need, effortless and easy exchange for other type of fitting from the line of security fittings Rostex is possible (the only condition: same dimensions and hole spacing for screws).
Availability:
Available on special order; you may inquire more information at your nearest ADLO shop.
Hardware for security fitting Rostex (included in the packing):
-Outer and inner fitting plate.
-Fitting gripping from the outer side is a knob and a handle from the inner side.
-Bolts, screws, lining for the inner and outer plate, connecting square end of the handle, reverse handle mechanism, handle grip screw (worm), and L-keys needed for the installation.
-Installation and service manual, drilling templates that will make the measuring and drilling work easier.
Good advice:
A fitting should be ranked in the same security class as the door or higher. Security fitting marked T802 requires installation of an anti-drill cylinder which will maintain the door security.
Explanation: Open fittings are not protected against possible break-in from the outside.
The end result – fitting installed on ADLO security door – will make even a demanding customer happy
